Cast Iron M3 Screw Nail Cold Forging Header Machine

Brand Name : BEYOND MACHINERY

Model Number : SH-5G

Certification : ISO9001 CE

Place of Origin : CHINA

MOQ : 1

Price : USD 2,888.00-4,888.00/set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10 sets 15 days

Delivery Time : 30-45 DAYS

Packaging Details : Thin film

Other Name : Cold heading machine

Usage : Screw Nail Making

Power : 1.5kw

Voltage : 380V/ Customized

Material : Cast Iron, Carton steel, Alloy

Warranty : 12 months

Contact Now

Automatic High Speed Screw Making Cold Forging Header Machine For M3



Characteristics of heading machine



  1. Perfect design, easy to operate.
  2. The design of the monorail slideway makes the machine run at high speed and the production efficiency is also high.
  3. The main installation kits of this machine are made of high-quality materials, after high wear resistance and low deformation heat treatment process, the machine is durable and high precision
  4. Adopt a forced oil supply system to ensure that all parts of the machine are operating in the state of oil film, and the machine can be durable for a long time.
  5. The key components of this machine are all imported, which all meet the requirements of high precision, high hardness and high wear resistance.



Product Parameters



Model
Max. Blank Diameter
Max. Blank Length
Stroke
Production
Main motor
Length*Width*Height
Weight

mm
mm
mm
pcs/min
KW
mm
KGs
SH-5G
3
30
50
135-230
1.5
1600*840*1000
900





The flow process of screw making machine


  1. Pull the coarse line to the line patch needed. (Wire drawing machine)
  2. Adjust, produce, and form the head of screw on the heading machine. (Screw heading machine)
  3. Grind tooth on the coil thread rolling machine, and form the screw completely (Thread rolling machine)
  4. Treat the semi-finished screw in the heat treatment according to the standard (Heat treatment furnace)
  5. According to the requirements, process plating etc. (Zinc plating machine)
  6. Packing and out of factory

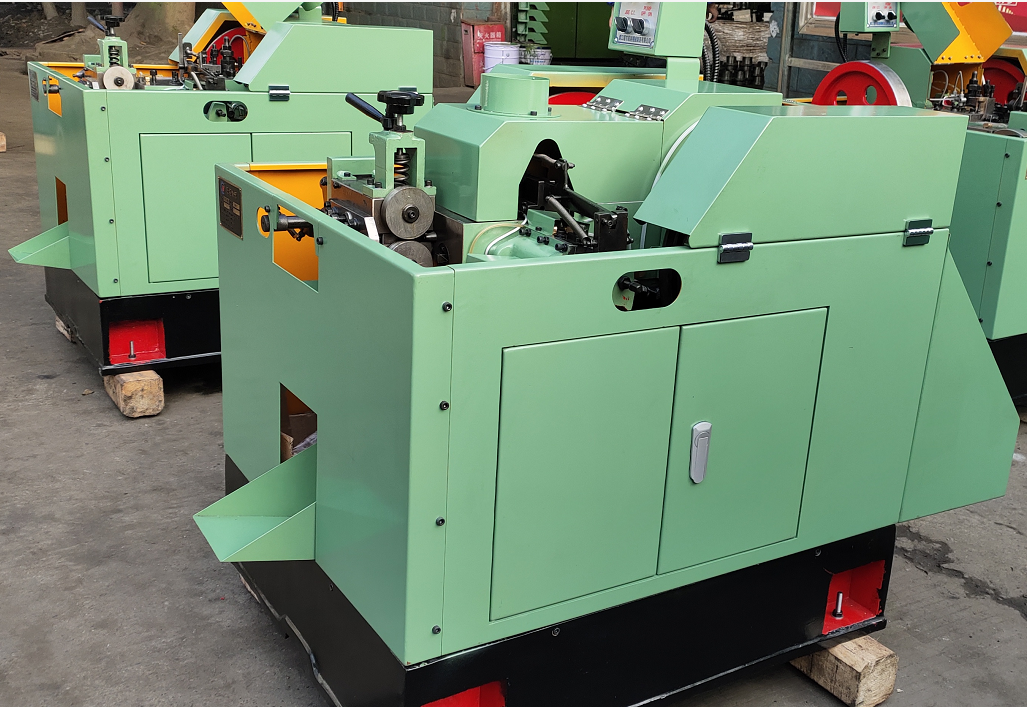

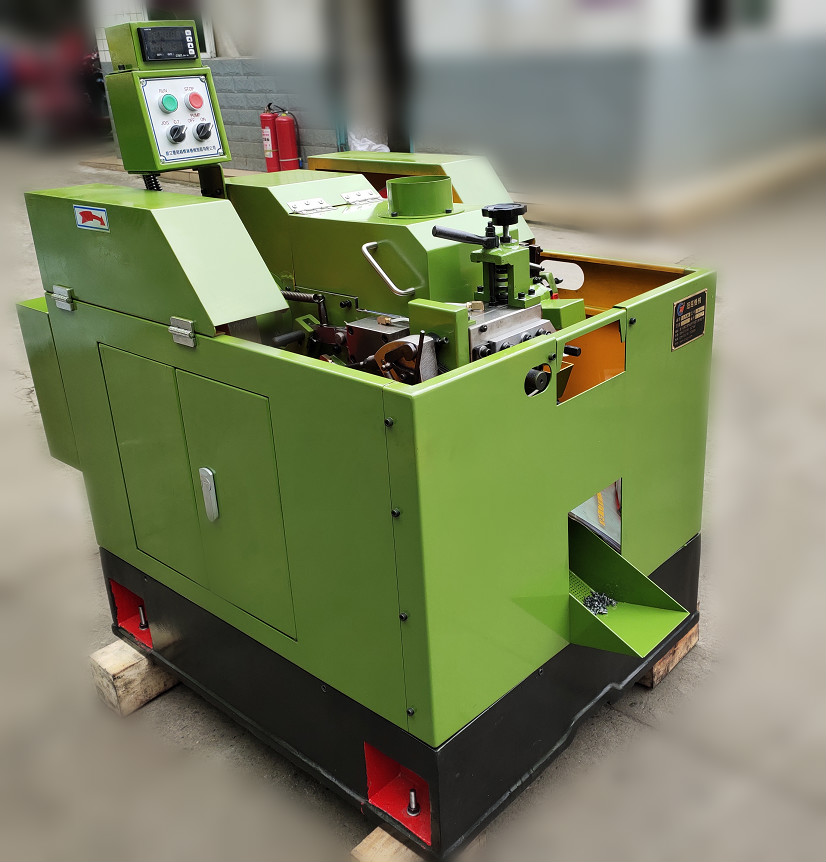

Details





Cast Iron M3 Screw Nail Cold Forging Header Machine



Cast Iron M3 Screw Nail Cold Forging Header Machine

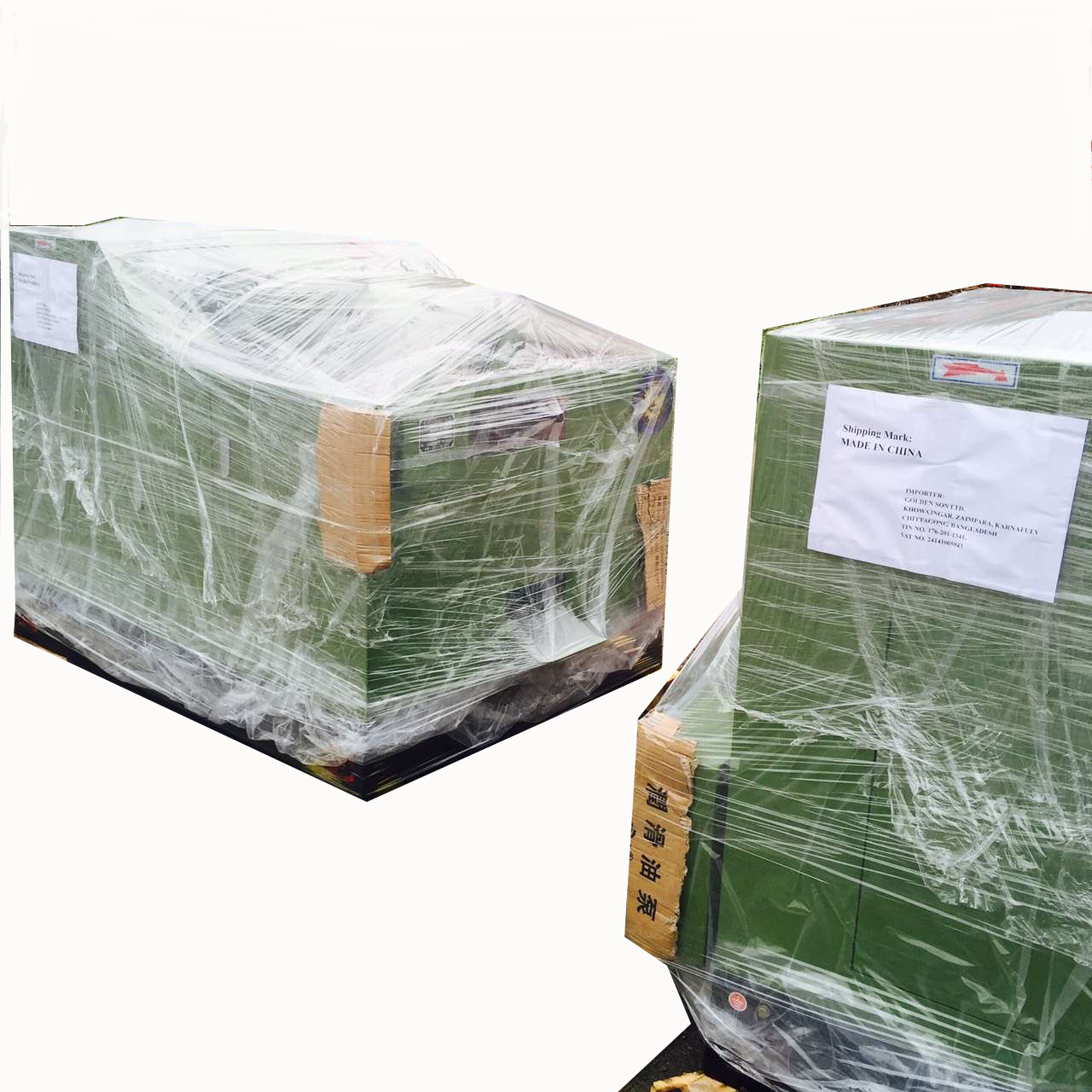

Packing



Plastic thin film

Cast Iron M3 Screw Nail Cold Forging Header Machine





Certificate



Cast Iron M3 Screw Nail Cold Forging Header Machine



Cast Iron M3 Screw Nail Cold Forging Header Machine





About US



Dujiangyan Beyond Machinery Co.,Ltd was established in 1992. We have 2 factories in DUJIANGYAN CITY.

Our company mainly produce multistage cold forming machines, heading machines and thread rolling machines.

We have large number of advanced technical produce equipment, wirh professional technical operator, excellent senior engineers and professional R&D team.



Cast Iron M3 Screw Nail Cold Forging Header Machine
